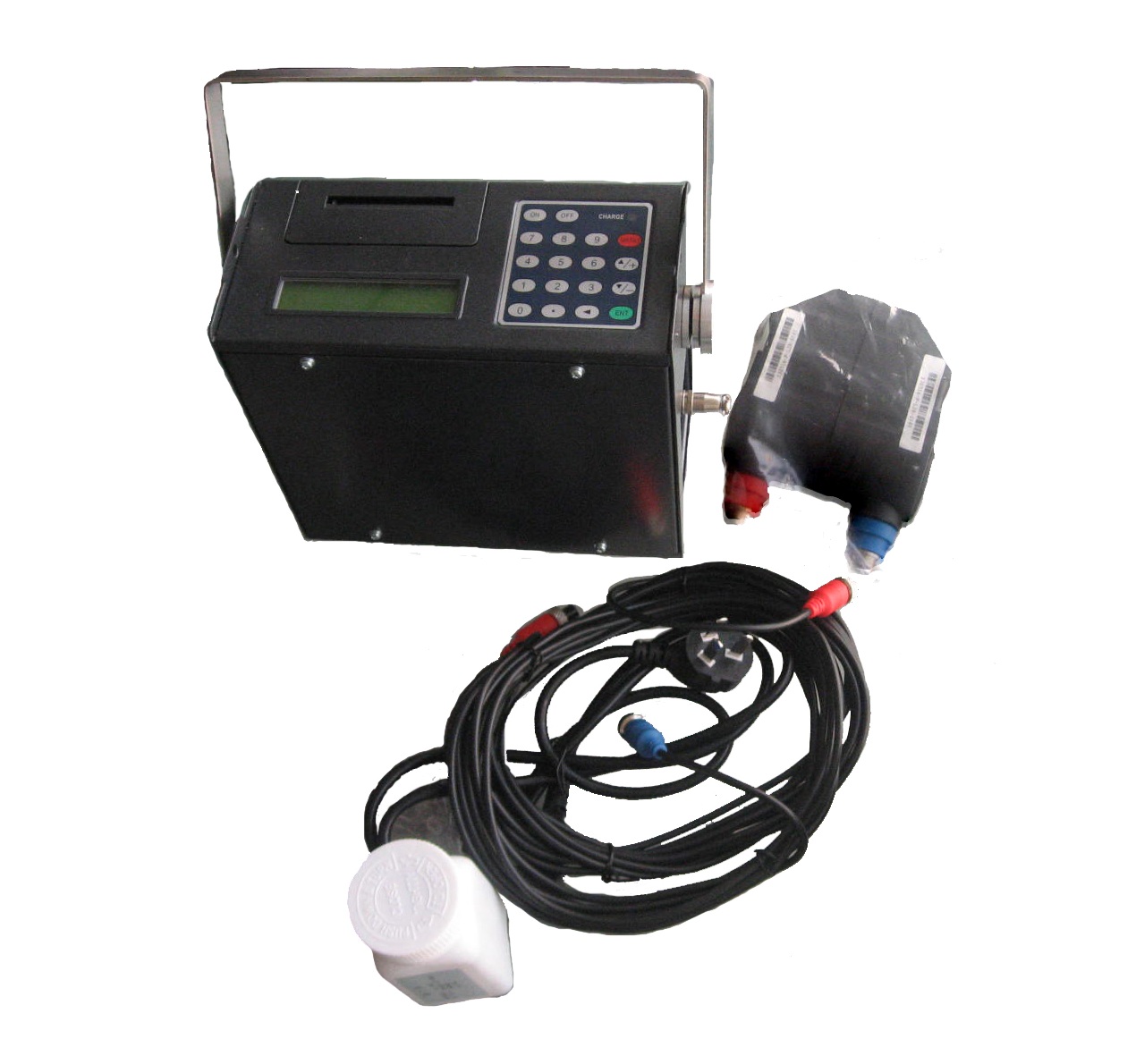

CX-UFM-TDS-100P portable type ultrasonic flowmeter

Main Features
1.Easy to install outside the pipe
2.High accuracy ±1%, good repeatability:±0.2%
3.Long-running cell、easy operation，built-in printer etc
4.two lines display: Instantaneous flow rate,Accumulate flow,status
5.Built-in printer，to print in time and regularly
6.Standard interface RS485 for data output and on-line operation
7.Self-diagnose to show the current status
8.Built-in Nickel-hydrogen cell supports 20 hours of operation

Technical Parameters

Sensor	S1	M1	L1	S1H	M1H
Pipe size(DN)	15-100	50-700	300-6000	15-100	50-700
Material	ABS			Special material for H -temp
Frequency	1MHz
Installation	V（N/ W）	V/ Z	Z	V/（N W）	V/ Z
calibration	Calibrated together with flowmeter
magnetism	Magnetic			No magnetic
Temperature	32℉～158℉（0-70℃）			32℉～320℉（0-160℃）
Protection class	IP65
Dimension(mm)	45*30*30	60*45*45	80*70*55	90*85*24	90*82*29
Weight(g)	75	250	650	94	150
Liquid types	Water. Sea water waste water. Chemical liquids. oil, crude oil. alcohol. beer. etc
Suspension concentration	≤10000 ppm with little air bubble
Pipe	Carbon steel stainless steel cast iron Brass PVC Aluminum etc.
Pipe liner	Rubber Slurry PP PS bakelite,PTFE
Signal cable	Standard：5M* 2 optional:10M* 2 or 15M *2

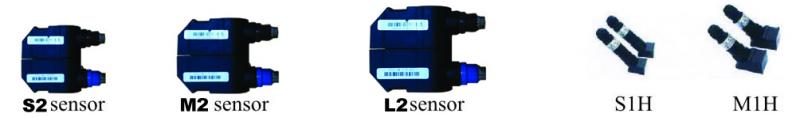

Sensors




Sensor S2 M2 L2 S1H M1H Pipe size(DN) 15-100 50-700 300-6000 15-100 50-700 Material ABS Special material for H -temp Frequency 1MHz Installation V（N/ W） V/ Z Z V/（N W） V/ Z calibration Calibrated together with flowmeter magnetism Magnetic No magnetic Temperature 32℉～158℉（0-70） 32℉～320℉（0-160） Protection class IP65 Dimension(mm) 45*30*30 60*45*45 80*70*55 90*85*24 90*82*29 Weight(g) 75 250 650 94 150 Liquid types Water. Sea water waste water. chemicalliquids. oil, crude oil. alcohol. beer. etc Suspension concentration ≤10000 ppm with little air bubble Pipe Carbon steel stainless steel cast iron Brass PVC Aluminum etc. Pipe liner Rubber Slurry PP PS bakelite,PTFE Signal cable Standard：5M* 2 optinal:10M* 2 or 15M *2
