Type：CX-CMFI coriolis mass flow meter

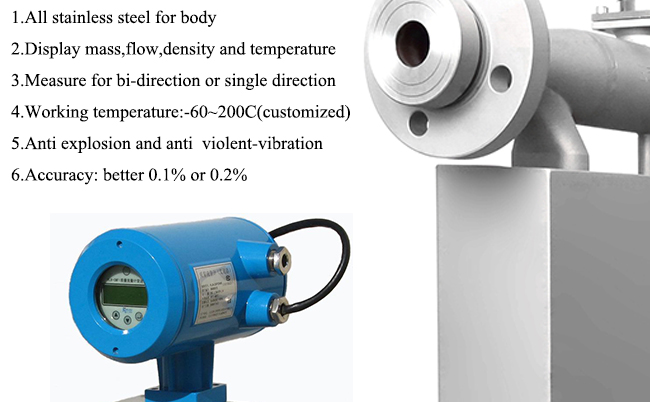

Illustrate：1) accuracy can up to 0.1% 2) ISO,CE,SGS standard for exporting 3) It can display current,total,temperature and density. 4) 9 consecutive years as gold supplier for export 5) More 80% meters for export 6) Explosion-proof certificate and anti-vibration

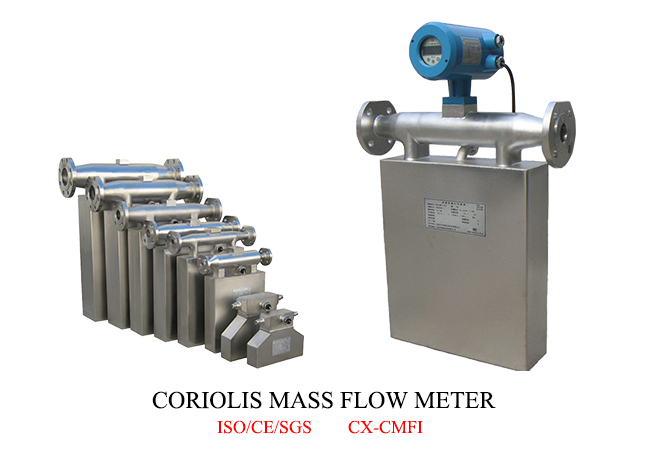

CX-CMFI Coriolis mass flow meter with ISO,CE,SGS
Brief instruction for our coriolis mass flow meter
1)Coriolis Mass Flow Meter are the leading meters for precision flow measurement.
2) the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
3)The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries and without the need for additional equipment, manual calculations, or estimations.
4)The meters are designed for unsurpassed performance in even the harshest operating environments.
5)They have no moving parts, and any special mounting or flow conditioning requirements. 6)Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.
7)The Coriolis Mass Flow Meter carry hazardous area approval for P. R. China.
1) accuracy can up to 0.1%
|
Mass flow accuracy |
±[0.2% or 0.1&+(zero stability /flow rate×100%) |
|
Mass flow repeatability |
±(1/2) ×[0.2% +(zero stability /flow rate×100%) |
|
Density range |
0.2 g/cm3~3.5g/cm3 |
|
Density accuracy |
±0.002g/cm3 |
|
Temperature range |
-60C~+200C |
|
Temperature accuracy |
±1C |
|
Output of current loop |
4mA~20mA |
|
Output of frequency/pulse |
0Hz~10kHz |
|
Contactor capacity of a Batch Control relay |
24V/0.1A |
|
Explosion-proof |
Essential safety:Exib[ib]IIBT4 Composite:Exdib[ib]IIBT4 |
|
Contactor form |
normal open |
|
Environmental Specifications |
|
|
Temperature range of fluid |
-40C~+200C |
|
Environmental temperature range |
0C~+40C |
|
Environmental humidity |
≤90% RH, non condensation |
|
Atmospheric pressure range |
86kPa~106kPa |
|
Power supply of transmitters |
Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V |
|
Specs |
Line Size |
Range |
Calibration Range |
Max. Pressure |
Zero Stability |
Velocity |
|
(mm) |
(t/h) |
(t/h) |
(MPa) |
(t/hr) |
(h m/t s) |
|
|
DN1 |
1 |
0~0.04 |
0.004~0.04 |
30.0 |
0.000008 |
353.7 |
|
DN3 |
3 |
0~0.35 |
0.035~0.35 |
30.0 |
0.000067 |
39.3 |
|
DN6 |
6 |
0~0.7 |
0.07~0.7 |
30.0 |
0.00016 |
19.65 |
|
DN10 |
10 |
0~1.2 |
0.12~1.2 |
30.0 |
0.0002 |
4.912 |
|
DN15 |
15 |
0~6.4 |
0.64~6.4 |
4.0 |
0.0011 |
2.183 |
|
DN25 |
25 |
0~16 |
1.6~16 |
4.0 |
0.002 |
0.902 |
|
DN40 |
40 |
0~40 |
4~40 |
4.0 |
0.003 |
0.334 |
|
DN50 |
50 |
0~65 |
6.5~65 |
4.0 |
0.006 |
0.197 |
|
DN80 |
80 |
0~160 |
16~160 |
2.5 |
0.01 |
0.0873 |
|
DN100 |
100 |
0~250 |
25~250 |
2.5 |
0.015 |
0.0544 |
|
DN150 |
150 |
0~550 |
55~550 |
2.5 |
0.03 |
0.0239 |
Explosion-proof Identification Code
Teble of Explosion-proof identification code for coriolis mass flow meter
| Form of Explosion-proof | Identification Code |
| Essential safety | Exib[ib]IIBT4 |
| Composite | Exdib[ib]IIBT4 |

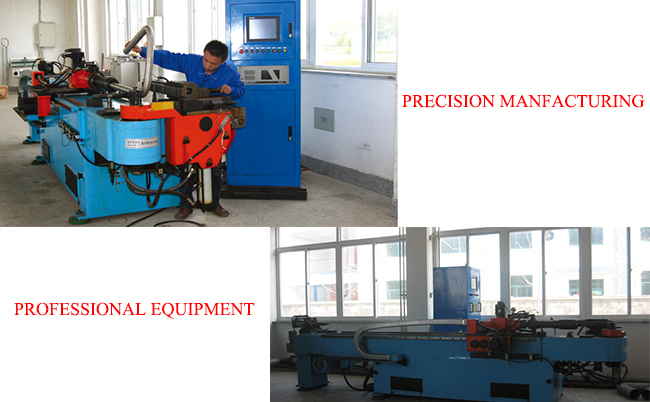

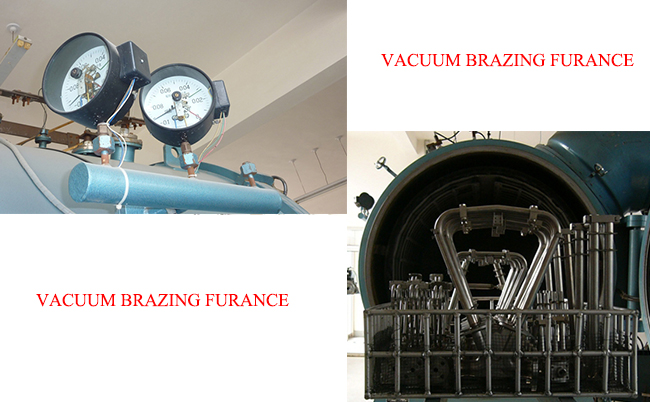

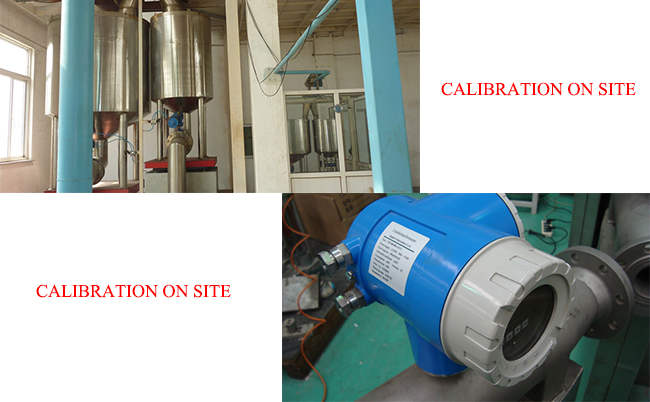

This is our factory photos for coriolis mass flow meter

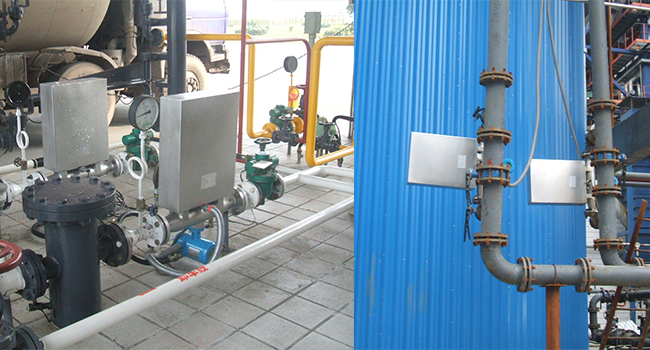

This is installation samples for our coriolis mass flow meter
This is our ISO,SGS,CE,national Patent certificates,measuring product certificates and business license
This is international marketing team ,
We work together like a BIG FAMILY and try our best to offer BEST SERVICE for our every clients!
