Propane combustion test device flow controller
sales01@cxflowmeter.com

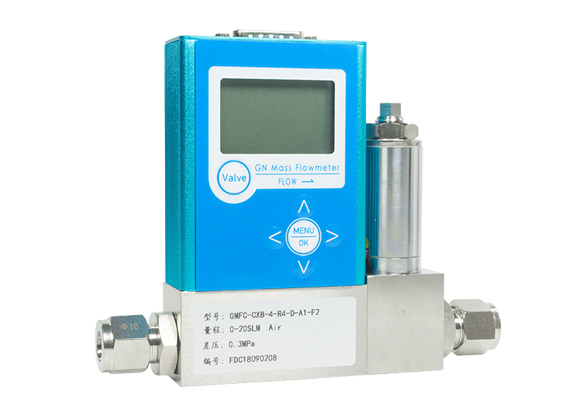

Today Winny will share a case where a real customer chose our gas mass flow controller to control the uniform output of propane gas.
Today Winny will share a case where a real customer chose our gas mass flow controller to control the uniform output of propane gas.
This is a company that produces automation equipment. In the single combustion test device of building materials products they produce,
a precise gas flow controller is needed to control the firepower of propane gas combustion.
a precise gas flow controller is needed to control the firepower of propane gas combustion.
1. Working condition analysis:
Medium: propane
Flow range: 0-69L/MIN
Power supply: 12-24V (±15)
Input: 0-5V
Output: 4-20mA
No display, with control
Accuracy: ±1%
Pressure difference range: 0.2MPa
Import pressure: 0.2Mpa
Pressure resistance: 3MPA
Temperature: 5-65℃
Connection: 10mm ferrule connector
Nitrogen calibration range
2. Industry Analysis: Single Combustion Test Device for Building Materials Products
1. Why use a flow controller: A controller is needed to control the firepower of propane gas combustion.
2. Fuel: commercial propane gas, purity ≥95%
3. Purpose: Monitor whether the gas flow is stable during the combustion process and control the combustion process
4. Pressure: The gas inlet pressure cannot be higher than 2 kg, and the accuracy is controlled within 1%.
2. Disadvantages of not using a flow controller:
A. The device cannot be automatically ignited.
B. Unable to control gas flow.
If you want to know other information about gas flow meters, butane and propane gas mass flow controllers, and combustion
test device flow controllers, please feel free to contact CIXIFM winny: sales01@cxflowmeter.com
test device flow controllers, please feel free to contact CIXIFM winny: sales01@cxflowmeter.com
