Reference for selecting high-temperature liquid wax flowmeters for pharmaceutical companies
sales01@cxflowmeter.com whatsapp:008618049841995
Our precision flowmeter oval gear flowmeter is widely used in pharmaceutical industry, electromechanical industry, new energy industry, university laboratory, chemical industry, mining and metallurgy industry, automation industry, etc. .
Taking a pharmaceutical company as an example, he provided these parameters:
Medium: liquid wax
Viscosity 130-160 mPa.s Non-corrosive, non-conductive
flow:
Common flow rate 2L/MIN
Maximum flow rate 6L/MIN
Minimum flow 1L/MIN
Pressure: within 10 kg
Temperature: 100-150 degrees
Accuracy: 0.5%
Output: RS485

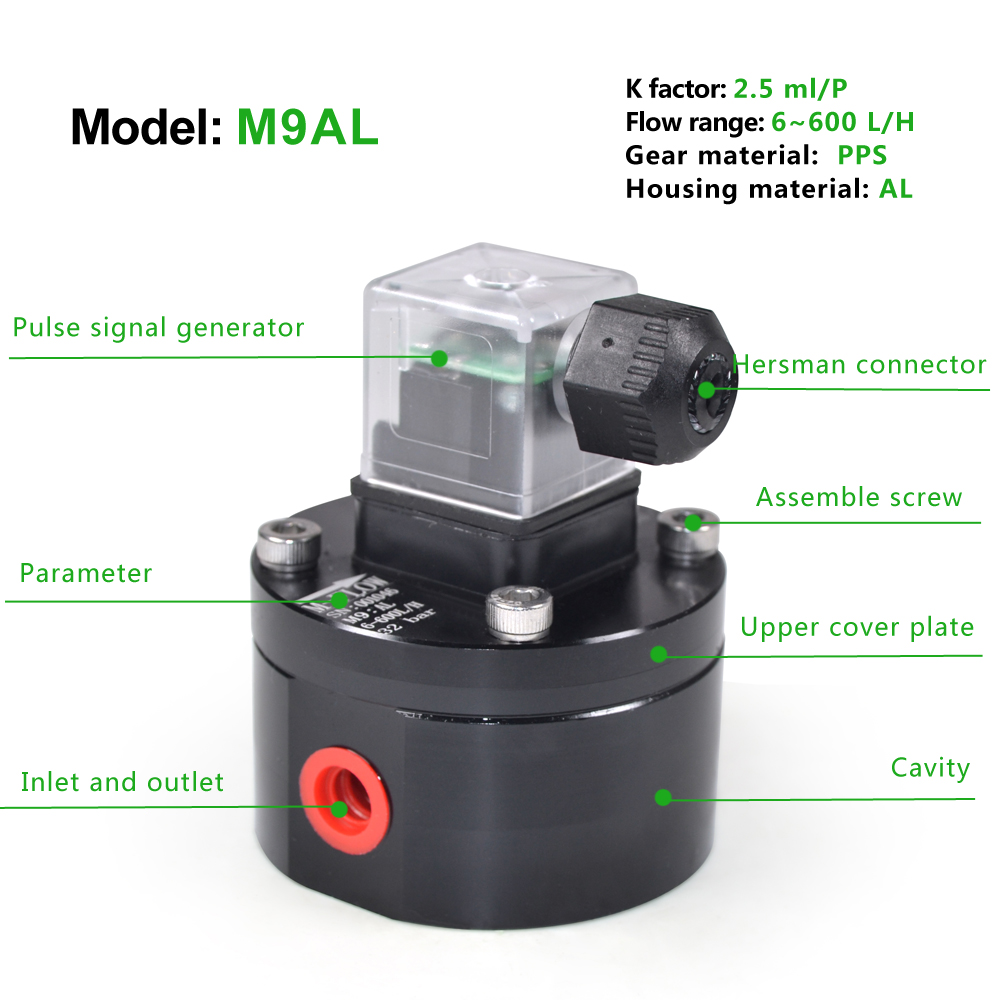

The figure below is the parameter of our standard M9AL flow meter
Finally, the customer chose the M9SS + high-temperature customized version + RS485 split type produced by us.
If you want to know more about precision flow meters and micro flow meters, please contact winny: sales01@cxflowmeter.com whatsapp:008618049841995
